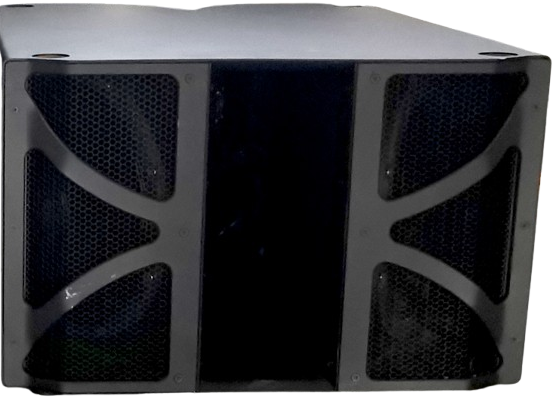

| ULTIMA BASS-88 | |
 | The ULTIMA BASS-88 is Compact, Loud & Clear - Beyond State-of-the-Art. It has very low compression and distortion, very low weight and physical volume while providing a high SPL. It is of touring grade intended as bass-module in bi/tri-amped systems by discotheques, theaters and live entertainment. |
| SPECIFICATIONS: | Components: (2) 12" Long excursion SP cone drivers | ||||||
| Low frequency limit (-10dB) [fc=60] | 33 Hz | ||||||
| Recom. max fc | 400 Hz | ||||||
| Max SPL* [fc=100] | 135 dB | ||||||
| Impedance (nom) | 4 Ohm | ||||||
| Recom. max amplifier power 4 ohms load | 3200 W | ||||||
| Dimensions | width | 566 mm | |||||
| height | 360 mm | ||||||
| depth | 670 mm | ||||||
| Volume, gross | 137 litre | ||||||
| Weight | 35 kg | ||||||
| * Peak level at 1 m under half space conditions using pink noise with crest factor 4 | |||||||
