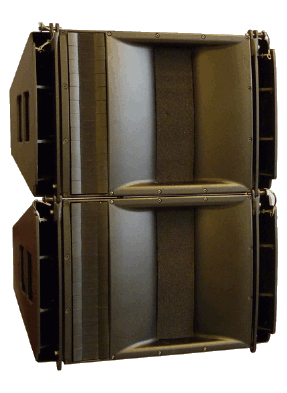

| ULTIMA VHA-40 | |
 | 3-way full range speaker with unique passive crossover between mid range and treble Datasheet Datasheet low res Price :: |
| SPECIFICATIONS: | Components: 2pcs 10" LF, 2pcs 6½" MF, 1pcs 360mm HF | ||||||
| Frequency response (Hz -6dB) | 50-22000 Hz | ||||||
| Dispersion -6dB line array | 50+70 degrees horizontally | 3-30 degrees vertically | |||||
| Sensitivity (dB/w/m average, full space) | 100 LF(-6dB@50Hz) | 107 MF-HF | |||||
| Impedance (ohms, nom) | 12 | ||||||
| Recom. amplifier power 8 ohms load (w) | 1600 RMS LF | 800 MF-HF | |||||
| Dimensions (mm) | width | 566 | |||||
| height | 367 | ||||||
| depth | 392 | ||||||
| trapeze angle | 30 | ||||||
| Weight (kg) | 32 | ||||||
